Circuit board cleaning method

Cleaning dirt and contaminants on the circuit board can be done in a variety of ways, the following are some common methods:

‌1. Use special cleaning agent

You can use special PCBA cleaning agents, such as board washing water, alcohol, etc., which can effectively remove stains on the board. When operating, the cleaning agent is usually sprayed or soaked on the circuit board, and then gently brushed with a soft brush.

‌2. Ultrasonic cleaning technology ‌

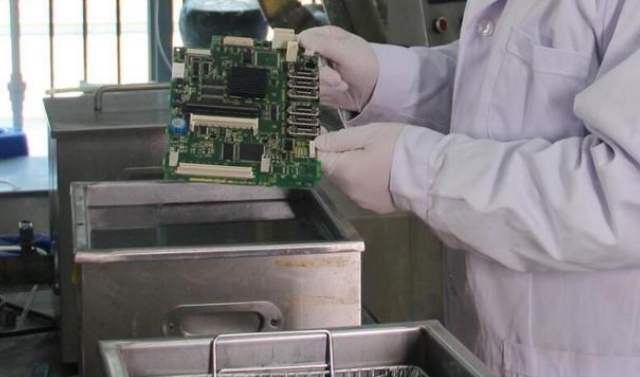

Ultrasonic cleaning equipment is used to improve the cleaning effect through acoustic vibration. Put the circuit board to be cleaned into the cleaner, add an appropriate amount of cleaning liquid, and start the device. Ultrasonic vibration can shake off stains, suitable for large area cleaning.

3. Dry ice cleaning ‌

This is a new type of environmentally friendly cleaning technology, through high pressure air to dry ice particles to clean the work surface, using the difference in the shrinkage rate of different substances to achieve the separation of stains. Dry ice cleaning does not use organic solvents at all, no waste liquid discharge, and is friendly to the environment.

‌4. Water based spray clean ‌

Especially suitable for cleaning PCBA circuit board after welding residual flux and other contaminants. This method uses water as solute carrier and adds a small amount of surfactant, which has the characteristics of environmental protection, safety and non-toxic.

‌Choosing the right cleaning agent and tools is also very important ‌. Common cleaning agents include deionized water, alcohol, acetone, etc. Deionized water can effectively remove surface dirt; Alcohol is suitable for cleaning oil and other organic matter; Acetone is suitable for cleaning more stubborn stains. In terms of tools, soft brushes, cotton swabs, sprayers, etc., are often used to clean circuit boards, paying attention to their softness and non-conductivity to avoid damage.

Precautions: During the cleaning process, pay attention to ESD damage and take preventive measures such as ESD gloves and workbench. In addition, according to the material and pollution degree of the circuit board to choose the appropriate cleaning methods and tools to avoid damage to the circuit board.
