Circuit board fault diagnosis and maintenance methods detailed

The circuit board is a crucial component of electronic equipment, which carries various electronic components and connects them through wires to make the device work normally. However, due to extended use time, changes in environmental conditions or defects in the manufacturing process, the board may suffer from various failures. The effective diagnosis and repair of these failures is essential to ensure the proper operation of the equipment. This paper will introduce the key points of circuit board fault diagnosis and common maintenance methods.

1. Observe the appearance and check connections

First of all, it is important to check the appearance of the circuit board. Check the surface of the circuit board for visible signs of burning, oxidation, or physical damage. Check that the connections between connectors, solder joints, and components are tight, loose, or broken. These surface and connection problems can directly lead to board failure.

2.Use test tools to perform electrical tests

Circuit board failures often involve electrical problems, so electrical testing with test tools is one of the key steps in diagnosis. For example, a digital multimeter is used to test voltage, current, and resistance on a circuit board. Comparing the test results with the standard values in the specification can quickly determine if there is an electrical fault.

3. Use infrared thermal imaging technology

Infrared thermal imaging is a very effective method for circuit board fault diagnosis. By taking a temperature profile of the board surface with an infrared camera, you can quickly detect areas of abnormal heating, which may be caused by short circuits, overload, or component damage. With this information, maintenance personnel can fix problems in a targeted manner.

4. Signal analysis with detection instruments

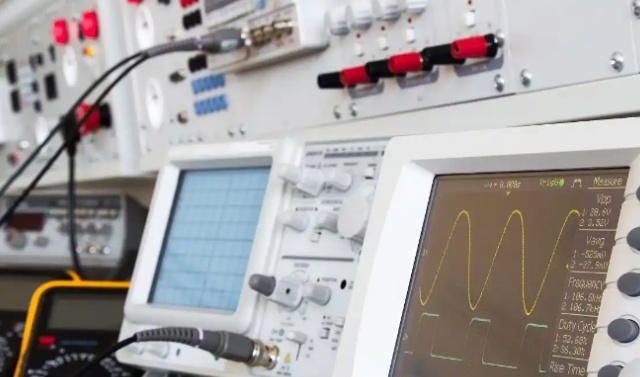

Signal analysis is a common diagnostic method for digital circuit boards. Through the use of oscilloscope, spectrum analyzer and other instruments, we can observe the waveform and spectrum characteristics of each signal line on the circuit board. An abnormal waveform or spectrum may indicate some component failure or communication error, helping to determine the location and cause of the failure.

5. Replace components in a step-by-step manner

If the above methods cannot accurately locate the fault, the last resort is to replace the components on the board step by step. By replacing components one by one and continuously testing, you can gradually narrow down the scope of the fault and finally find the component causing the problem. While this is time-consuming and laborious, it is usually an effective solution.

In summary, the fault diagnosis and maintenance of the circuit board need to use a variety of methods, from appearance inspection to electrical testing to signal analysis, and gradually troubleshoot the problem to ensure that the equipment can return to normal operation as soon as possible. At the same time, timely updating of maintenance records and fault analysis reports is of great significance for future fault prevention and improvement.
